Elektromagnetna brava, vodootporna, YLI YM-500NW, jedna vrata, do 500 kg

Opis

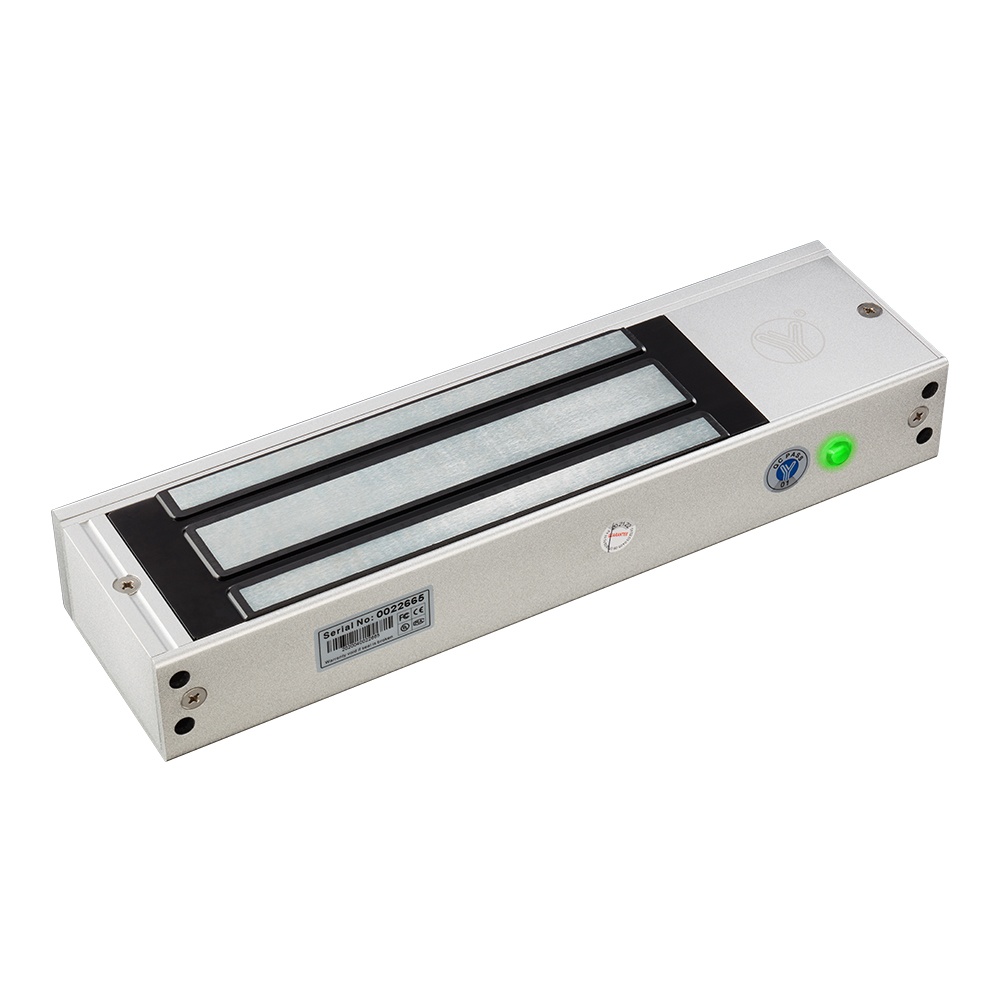

YM-500NW-S je vodootporna IP68  elektromagnetna brava sa snagom držanja do 500kg (1200lbd).

Nosač za bravu poručite ovde: MBK-500NZL-W

Model    YM-500NW-S

Size  230 x 72 x 37.8mm (LxWxH)

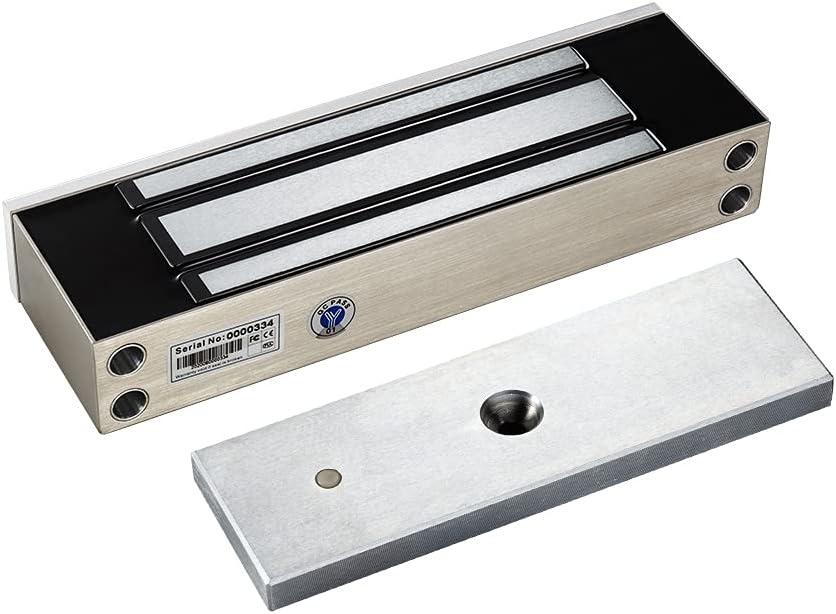

Armature Plate Dimension 185 x 60 x 13.2mm (LxWxH)

Holding Force 500kg (1200lbs)

Input Voltage DC12V

Current 12V/500mA (±10%)

Signal Output Lock signal (NO/COM)

Suitable Wooden door, Glass door, Metal door, Fireproof door

Surface Temperature  < +20°C

Operating Temperature -20°C ~ +55°C

Humidity 0-95% (non-condensing)

Cover Finish Stainless Steel

Waterproof Level IP-68

Weight 4.5kg

Ceertificate  MA CE-EMC CE-LVD FCC RoHS REACH WEEE

...
